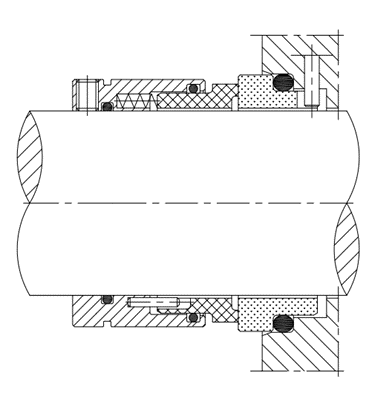

Type US2 (single mechanical seal)
- Single mechanical seal
- Balanced
- Dual directional
- Multi-spring
| Operating limits | ||
| Pressure | Pmax | 2.0MPa |
| Temperature | tmax | 200°C |
| Speed | vmax | 20 m/s |
Area of application
The US2 mechanical seal is designed for reliable use in water, oils, mildly corrosive chemical media, slurries, and liquids containing solids. It is used in centrifugal pumps in the petrochemical and chemical industries, as well as in the pulp, paper, and sugar industries and in wastewater treatment plants.
| Materials | |
| Part | Code |
| Rotating ring | A, B, Q |
| Stationary ring | U2, Q, V, S |
| Secondary, flexible seals | E, P, K, V |
| Spring | G, M |
| Other metal parts | G, M |
